リベット
As one of professional manufacturer in China, Notin would like to provide you Rivets. And we will offer you the best after-sale service and timely delivery.
What is a rivet?
A rivet is a permanent mechanical fastener used to join two or more materials. Rivets work by inserting a metal pin into an aligned hole and deforming the end, creating a strong, secure, and durable connection. Unlike temporary fasteners like screws, rivets do not rely on threads, but instead form a permanent connection, making them ideal for applications requiring high strength, durability, and vibration resistance.
Classification of Rivets
Rivets are typically categorized by head shape, degree of hollowness, or material.

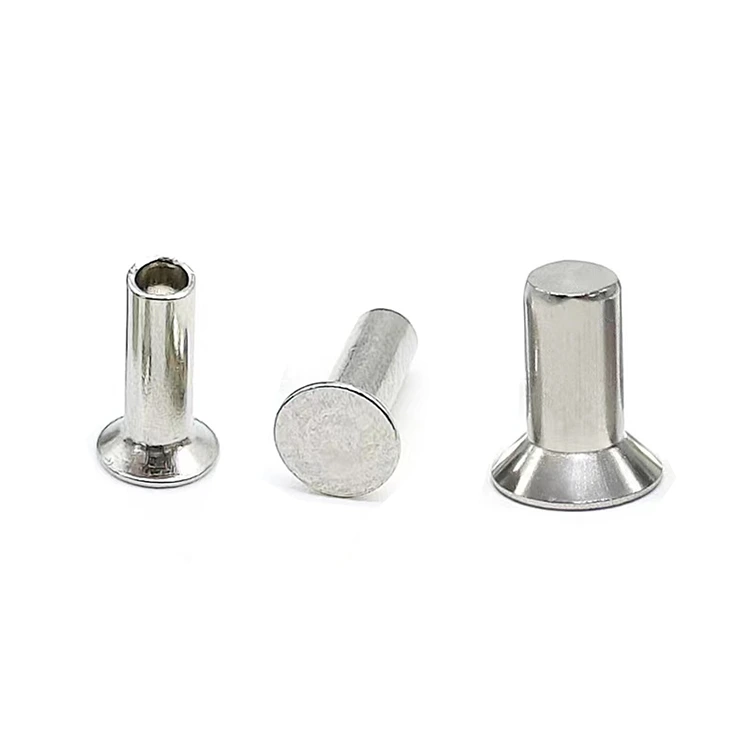

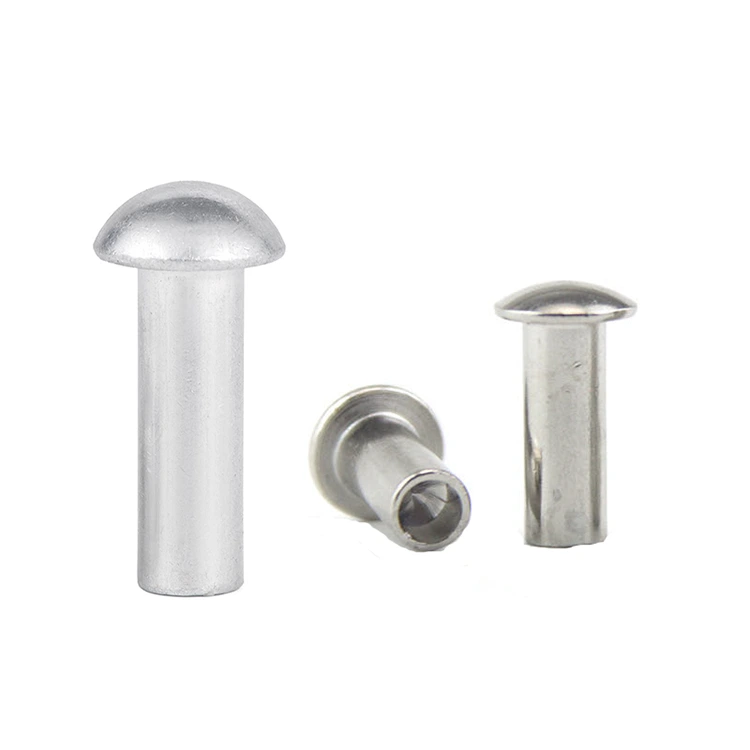

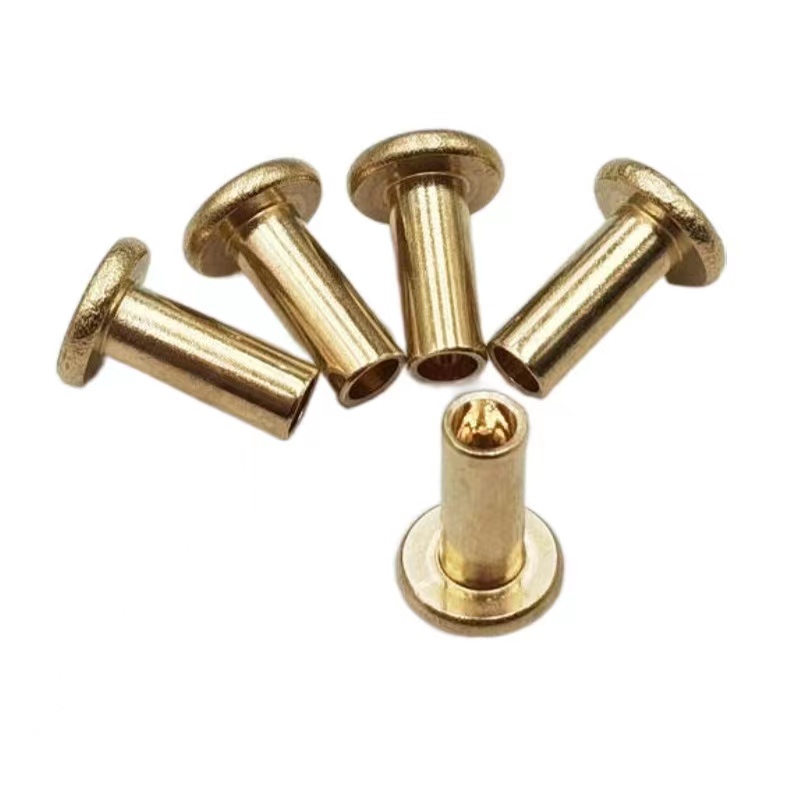

Based on head shape, rivets can be classified as flat head rivets, round head rivets, countersunk head rivets, mushroom head rivets, universal head rivets, truss head rivets, etc.

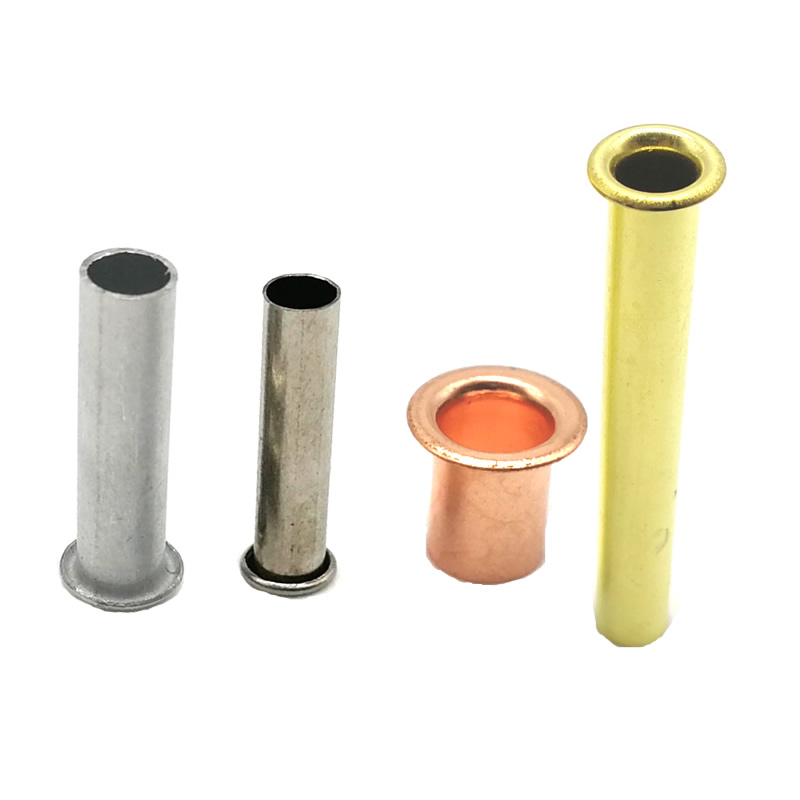

Based on degree of hollowness, rivets can be classified as solid rivets, semi-tubular rivets, or full tubular rivets.
Based on material, rivets can be classified as brass rivets, stainless steel rivets, steel rivets, aluminum rivets, copper rivets, etc.
What surface finishes are available for rivets?
Rivet surfaces are typically treated with rust-proofing treatments, primarily electroplating, including zinc plating, nickel plating, chrome plating, tin plating, gold plating, and silver plating. Electroplating is a common rust-proofing method for rivets. It applies a layer of plating to the rivet surface through physical or chemical methods. The plating effectively prevents corrosion and rust, while also providing a certain aesthetic effect.
Another special surface treatment method is head coating. Head coating is performed after the rivet is electroplated. This allows for a variety of colors on the rivet head, achieving an aesthetically pleasing finish.
Aluminum rivets cannot be electroplated, but they can be anodized. Anodizing also allows for a variety of color options, but the unit price is higher than electroplating.
Rust-proofing the rivet surface is crucial, effectively extending the rivet's service life and ensuring a secure connection. Different rust-proofing methods are suitable for different environments and applications, so the choice should be tailored to the specific situation.
- View as

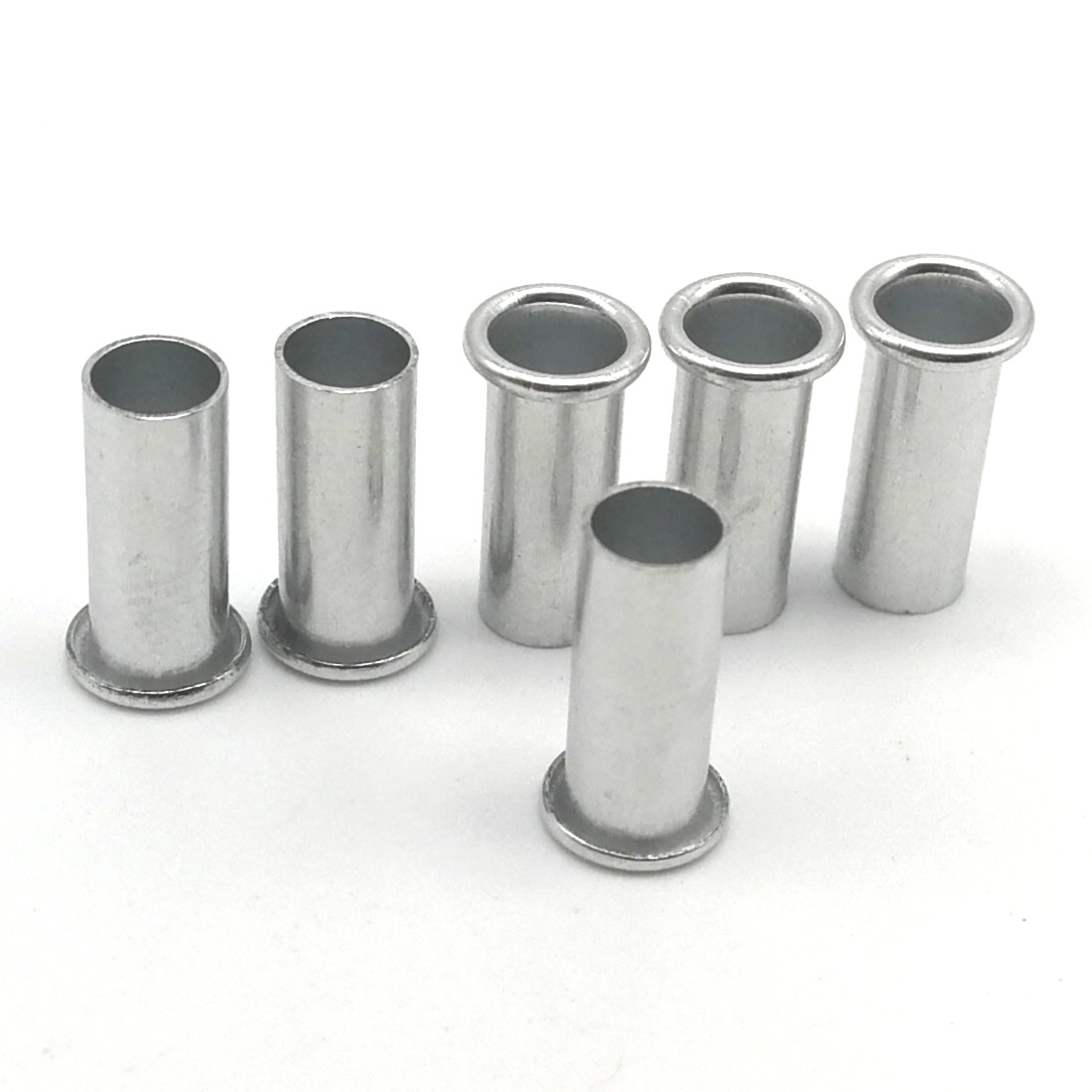

アルミ半中空リベット
アルミニウム半中空リベットは、基本的にアルミニウム合金で作られた締結具です。頭はしっかりしていて、尾は部分的に空洞になっています。特別なツールを使用してそれらを取り付けると、その中空部分が広がってカールし、非常に強力で固定された接合部が形成されます。アルミなので当然軽くて錆びにくいので、重さが気になる場合やハードな環境で使用する場合には大きなメリットとなります。他の素材で作られたリベットと重ね合わせると、手頃な価格と優れたパフォーマンスの間の最適な場所に到達します。
続きを読むお問い合わせを送信
ユニバーサルヘッドリベット
ユニバーサルヘッドリベットは、リベット分類システムにおける機械的接続部品の一種です。ヘッドは平らな円弧状の構造をしており、薄い金属板、革、帆布、木材などの接合に適しています。このタイプのリベットは、冷間または熱間リベット締めプロセスを通じて固定され、非密閉の圧力がかかる環境での取り付けが簡単で費用対効果が高いという利点があります。皿リベットなどの同様の製品と比較して、ユニバーサルヘッドリベットは、突き出た半球状のヘッドデザインにより、薄い金属シートや革、キャンバス、木材などの非金属材料のリベット締めに適しています。
続きを読むお問い合わせを送信
ツーピースリベット
ツーピース リベットは通常、メス リベットとオス リベットの 2 つの部品で構成されます。雌リベットは、一端に内穴があり、もう一端に固定端があります。雄リベットは固体のようですステップリベット、メスリベットの内穴にフィットします。使用するには、まず雌リベットを対象物に固定し、次に雄リベットを雌リベットに挿入して所定の位置に打ち込み、2 つの対象物を結合します。この設計により、信頼性の高い接続強度を提供しながら、取り付けが簡素化されます。 Nuote Metals は、この種のツーピース リベットに関して 10 年の経験があります。図面をお送りいただくことを歓迎します。
続きを読むお問い合わせを送信What are the advantages of rivets over other fasteners?
1. Ease of Installation
Rivets are fast to install, and even fully automated for high-volume applications, resulting in a simple and efficient operation process.
2. Connection Reliability
The riveting process is standardized, with strict quality control, resulting in highly stable connections. Visual inspection allows for quick verification of connection quality.
3. Vibration and Impact Resistance
Rivets connect through deformation or interference fit, providing strong clamping force and excellent vibration resistance, capable of withstanding vibration and shock.
4. Low Cost
Rivets are easy to install and can be fully automated, saving significant labor costs.
What are the advantages and disadvantages of rivets made of different materials?
Aluminum Rivets
Advantages: Lightweight, reduces overall product weight, low cost, suitable for general civilian applications.
Disadvantages: Low tensile and shear strength, unsuitable for high-strength workpieces, prone to electrochemical corrosion when in contact with metals such as stainless steel.
Stainless Steel Rivets
Advantages: Strong corrosion resistance, high hardness, suitable for high-strength workpieces (such as marine equipment)
Disadvantages: Higher cost, typically more expensive than aluminum rivets of the same specification.

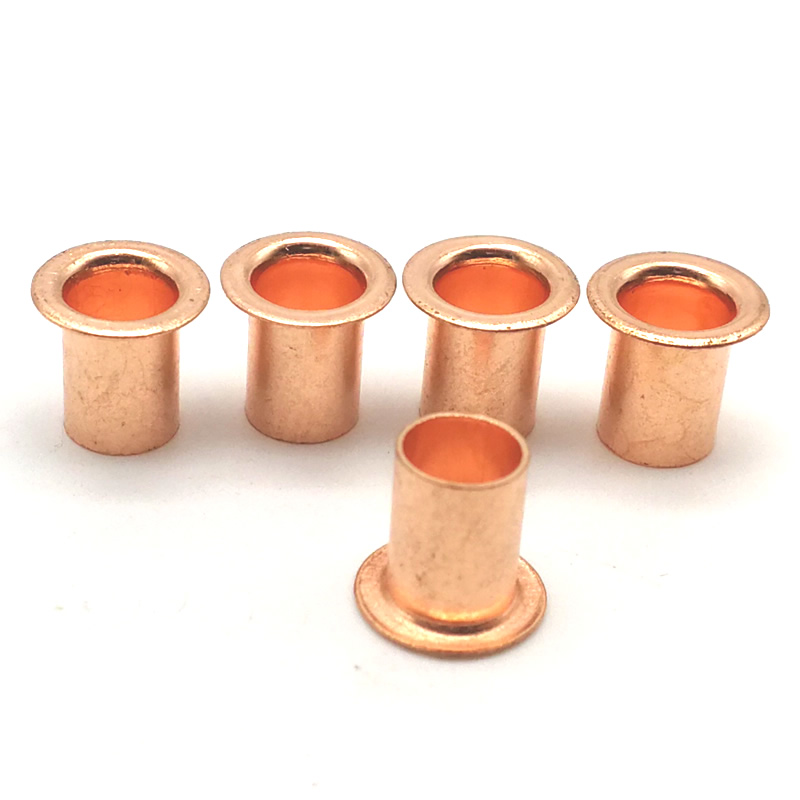

Brass and Copper Rivets
Advantages: Excellent conductivity (such as connecting electronic components), good corrosion resistance.
Disadvantages: Higher cost, more difficult to process.
Steel Rivets
Advantages: High hardness, high connection reliability, and wide applicability.
Disadvantages: Compared to other materials, iron rivets are more prone to rusting.
What are the main applications of rivets?
Rivets have a wide range of uses, from small items like a pair of scissors to large items like airplanes and ships, as well as in high-precision medical applications.
Industrial Manufacturing
Rivets are used in a wide variety of industrial fields, wherever there is a need to connect two or more materials.
Electronics
Rivets secure heat sinks and chips, providing both vibration damping and noise reduction, and are widely used in the cooling systems of electronic products such as computers and mobile phones.
Automotive
Rivets are widely used to connect components of automobile bodies and chassis, such as doors and hoods. Their lightweight and corrosion-resistant properties make them an indispensable joining method in automotive manufacturing.
Aerospace
In aircraft manufacturing, rivets are used to connect different fuselage components, such as wings and tailplanes. Millions of rivets create high-strength, corrosion-resistant joints. Aluminum and titanium alloy rivets are often used to connect components of corresponding materials, ensuring stability in extreme environments.
Rivets are used everywhere. The above examples only represent a small number of their applications. We see rivets everywhere in our daily lives, such as on scissors, folding beds, and strollers etc. Rivets can be customized to different sizes and materials depending on the application.
Nuote Metals has specialized in the rivet industry for over a decade. Our factory is located in Dongguan, a city known as the "World Factory," a city with a developed industry and convenient transportation. This allows us to respond quickly when acquiring raw materials and supporting surface treatments, meeting our customers' needs for quick access to samples and bulk orders. We produce 10 million rivets daily and have molds of various specifications, allowing us to produce rivets as small as 0.8mm and as large as 10mm. We welcome your inquiries and visits.
プロの中国リベットメーカーおよびサプライヤー、私たちは独自の工場を持っています。満足のいく見積もりを提供します。お互いに協力して、より良い未来と相互利益を生み出しましょう。
